EL-UE200

Introduction

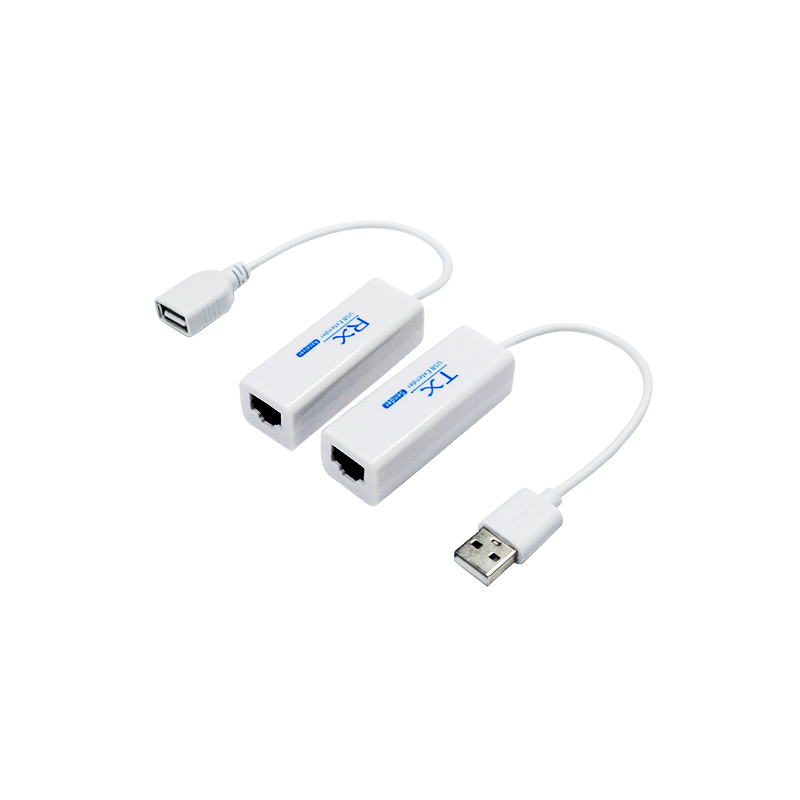

With one sender, one receiver, the USB extender used in pairs. Extend the USB signal via CAT5E or CAT6 cable up to 100 meters. In short distance, the speed can achieve USB2.0 Standard.
Since we make the power consumption such low, there is no power adapter required for the extender. They all powered from the host(computer). In the receiver, the power is from the sender via the CAT cable.
Features
1.Compliant with USB 2.0 specification in short distance(<10Meter)
2. Provides support for any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB device;
3. Some low power low-speed USB devices can work with cable up 100 meters.
4. Embedded USB 1.1 Transceivers prevents signal loss;
5. Downstream connector: Female, Type “B”, USB Approved Connector;
6. Upstream connector: Male,Type “A”, USB Approved Connect.
