Ethernet Switch

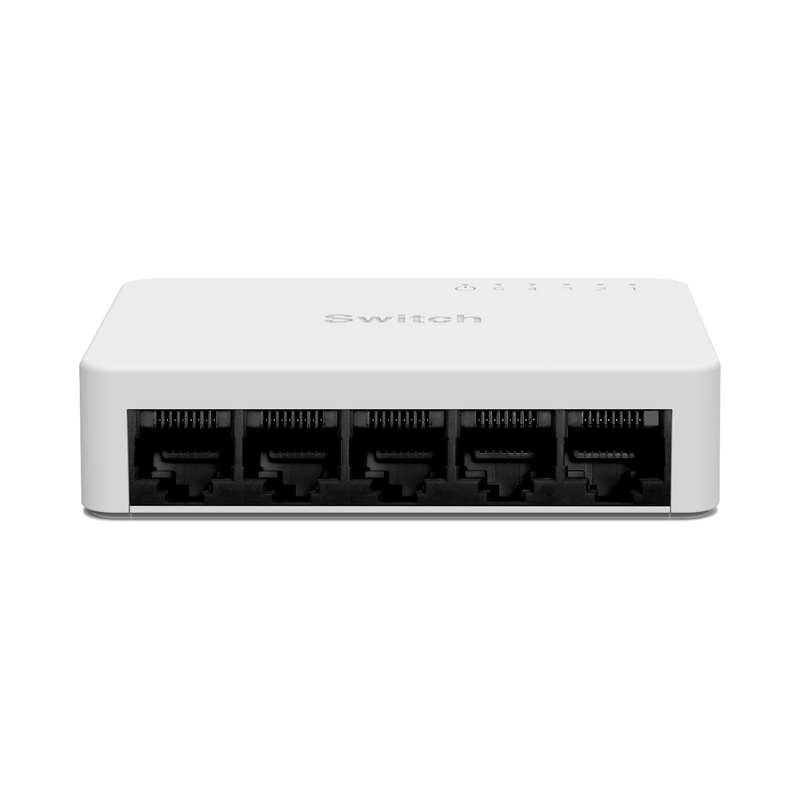

5 ports100M Ethernet Switch
EL-5FE
The 5-Port 10/100Mbps Fast Ethernet Switch is a compact, unmanaged networking device designed for simple and reliable network expansion in home, small office, and SOHO environments. Featuring five auto-negotiation RJ45 ports, this plug-and-play switch allows you to connect up to five Ethernet-enabled devices—including computers, printers, IP cameras, servers, and other switches—at speeds of 10 or 100 Mbps. With no configuration required, it offers an instant, cost-effective solution for expanding your wired network.
Key Features
Technical Specifications
Specification Details
Ports 5× 10/100Mbps RJ45 Auto-Negotiation ports
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control
Switching Capacity 1 Gbps
Packet Forwarding Rate 0.74 Mpps (max)
MAC Address Table 1K–2K entries
Transmission Method Store-and-Forward
Auto MDI/MDIX Supported on all ports
Jumbo Frame Support Up to 2K (varies by model)
Power Consumption 1.1W – 1.87W (max)
Power Supply External power adapter (5.0VDC / 0.6A typical)
Fan Fanless
Acoustic Noise 0 dB
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -40°C – 70°C (-40°F – 158°F)
Operating Humidity 10% – 90% (non-condensing)
Dimensions (W×D×H) 103.5 × 70 × 22 mm (4.1 × 2.8 × 0.9 in.)
Certifications FCC, CE, RoHS compliant
Ideal Applications
- 5× 10/100Mbps Auto-Negotiation RJ45 Ports – Each port automatically detects and adjusts to the optimal network speed (10Mbps or 100Mbps) and duplex mode (half/full-duplex) for seamless compatibility with a wide range of network devices.
- Auto MDI/MDIX on All Ports – Eliminates the need for crossover cables or dedicated uplink ports. Simply plug in any standard straight-through Ethernet cable to connect to a switch, hub, router, or server.
- Plug-and-Play Installation – No software installation or configuration is required. Just power on the switch and connect your devices—it works right out of the box.
- Non-Blocking Wire-Speed Switching – The store-and-forward switching architecture forwards and filters packets at full wire-speed, ensuring maximum throughput and minimizing latency.
- IEEE 802.3x Flow Control – Supports flow control for full-duplex mode and backpressure for half-duplex mode, alleviating traffic congestion and ensuring reliable data transmission.
- Energy-Efficient Design – Green Ethernet technology automatically reduces power consumption by deactivating unused ports or adjusting power based on cable length, helping to save energy and reduce operating costs.
- Fanless Silent Operation – The fanless design ensures zero acoustic noise, making it ideal for quiet environments such as offices, classrooms, and bedrooms.
- Compact and Versatile Mounting – The ultra-compact form factor allows for flexible desktop or wall-mounting placement, fitting easily into any workspace.
Technical Specifications
Specification Details
Ports 5× 10/100Mbps RJ45 Auto-Negotiation ports
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control
Switching Capacity 1 Gbps
Packet Forwarding Rate 0.74 Mpps (max)
MAC Address Table 1K–2K entries
Transmission Method Store-and-Forward
Auto MDI/MDIX Supported on all ports
Jumbo Frame Support Up to 2K (varies by model)
Power Consumption 1.1W – 1.87W (max)
Power Supply External power adapter (5.0VDC / 0.6A typical)
Fan Fanless
Acoustic Noise 0 dB
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -40°C – 70°C (-40°F – 158°F)
Operating Humidity 10% – 90% (non-condensing)
Dimensions (W×D×H) 103.5 × 70 × 22 mm (4.1 × 2.8 × 0.9 in.)
Certifications FCC, CE, RoHS compliant
Ideal Applications
Expanding wired network connectivity in home networks and small offices
Connecting IP cameras, network printers, desktop PCs, and network-attached storage (NAS) devices
School dormitories, surveillance systems, and temporary network extensions for meetings or events
SOHO environments requiring a simple, reliable, and no-configuration networking solution
