Ethernet Switch

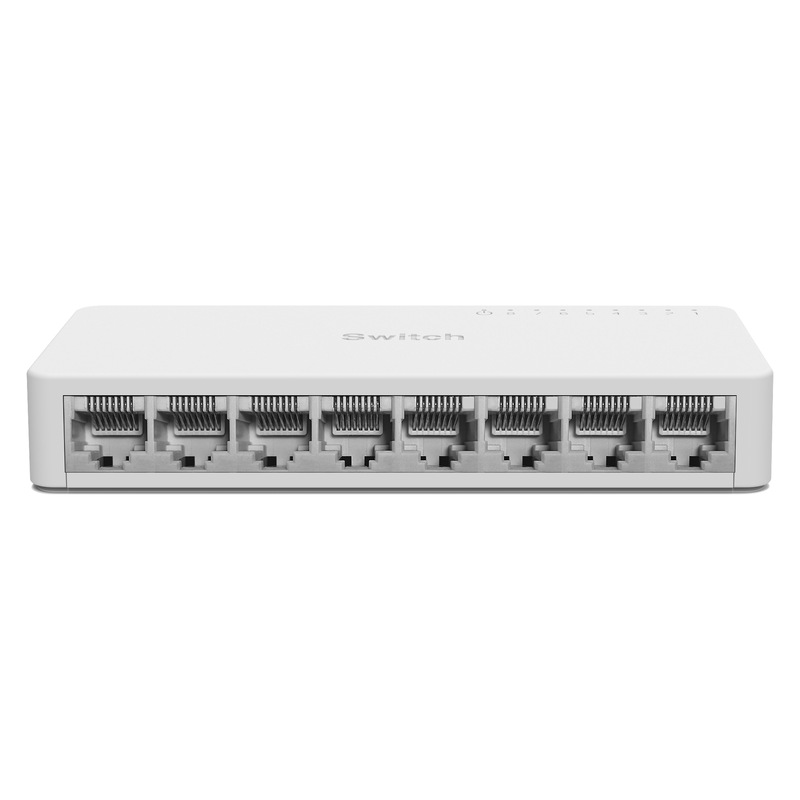

8PortsGigabitNetwork Switch
EL-8GE
The 8-Port Gigabit Ethernet Switch is a high-performance, plug-and-play networking solution designed to expand your wired network with lightning-fast Gigabit speeds. Ideal for home offices, small businesses, and SOHO environments, this switch allows you to connect up to eight Ethernet-enabled devices—including computers, network printers, IP cameras, NAS devices, gaming consoles, and smart TVs—at speeds of up to 1000 Mbps (1 Gbps). With no configuration required, it delivers instant, reliable network expansion for bandwidth-intensive applications such as HD video streaming, online gaming, and large file transfers.
Key Features
Technical Specifications
Specification Details
Ports 8× 10/100/1000 Mbps RJ45 Auto-Negotiation ports
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet
Switching Capacity 16 Gbps
Packet Forwarding Rate 10 Mpps
MAC Address Table 4K entries
Jumbo Frame Support Up to 9K bytes
Transmission Method Store-and-Forward
Auto MDI/MDIX Supported on all ports
Power Supply External power adapter (5V DC, 1A typical)
Power Consumption ≤ 4.5W (max)
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -40°C – 85°C (-40°F – 185°F)
Operating Humidity 5% – 95% (non-condensing)
Certifications FCC, CE, RoHS compliant
Ideal Applications
Expanding wired network connectivity in home networks, small offices, and SOHO environments
- 8× Gigabit Ethernet Ports – Eight 10/100/1000 Mbps auto-sensing RJ45 ports automatically detect and adjust to the optimal network speed, providing full Gigabit connectivity to all connected devices.
- High-Speed Non-Blocking Performance – With a 16 Gbps switching capacity and a wire-speed packet forwarding rate of 10Mpps, the non-blocking switching architecture ensures maximum throughput with no data bottlenecks.
- Auto MDI/MDIX on All Ports – Eliminates the need for crossover cables or dedicated uplink ports. Simply plug in any standard Ethernet cable to connect to a switch, router, or other network devices.
- Plug-and-Play Installation – No software installation or configuration is required. Just power on the switch and connect your devices—it works right out of the box.
- Store-and-Forward Switching Architecture – Ensures error-free packet delivery by verifying data integrity before forwarding, reducing network errors and improving overall reliability.
- IEEE 802.3x Flow Control – Supports flow control for full-duplex mode and backpressure for half-duplex mode, effectively managing traffic congestion and ensuring reliable data transmission.
- Energy-Efficient Design – Compliant with IEEE 802.3az Energy Efficient Ethernet standard, the switch automatically reduces power consumption during periods of low traffic or when ports are inactive, helping to save energy and lower operating costs.
- Fanless Silent Operation – The passive cooling design ensures zero acoustic noise, making it ideal for noise-sensitive environments such as offices, classrooms, libraries, and bedrooms
- Versatile Mounting Options – The compact form factor supports flexible desktop placement or wall mounting, with mounting hardware included in the box.
Technical Specifications
Specification Details
Ports 8× 10/100/1000 Mbps RJ45 Auto-Negotiation ports
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet
Switching Capacity 16 Gbps
Packet Forwarding Rate 10 Mpps
MAC Address Table 4K entries
Jumbo Frame Support Up to 9K bytes
Transmission Method Store-and-Forward
Auto MDI/MDIX Supported on all ports
Power Supply External power adapter (5V DC, 1A typical)
Power Consumption ≤ 4.5W (max)
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -40°C – 85°C (-40°F – 185°F)
Operating Humidity 5% – 95% (non-condensing)
Certifications FCC, CE, RoHS compliant
Ideal Applications
Expanding wired network connectivity in home networks, small offices, and SOHO environments
- Connecting desktop PCs, network printers, network-attached storage (NAS) , and IP cameras
- HD video streaming, online gaming, and large file transfers requiring high-speed Gigabit performance
- School dormitories, surveillance systems, and temporary network extensions for meetings or events
- Entertainment systems connecting smart TVs, gaming consoles, and media streamers
