KVM Extender

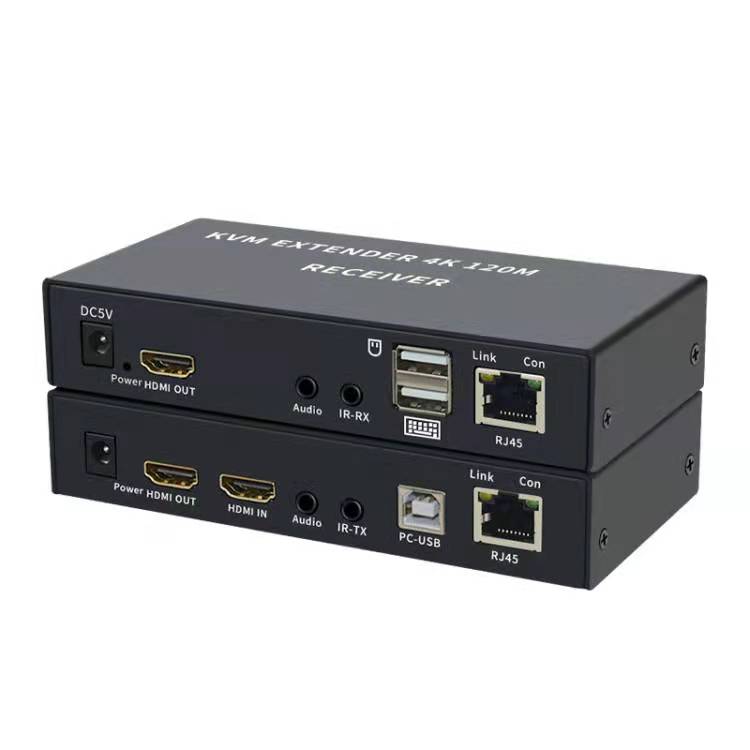

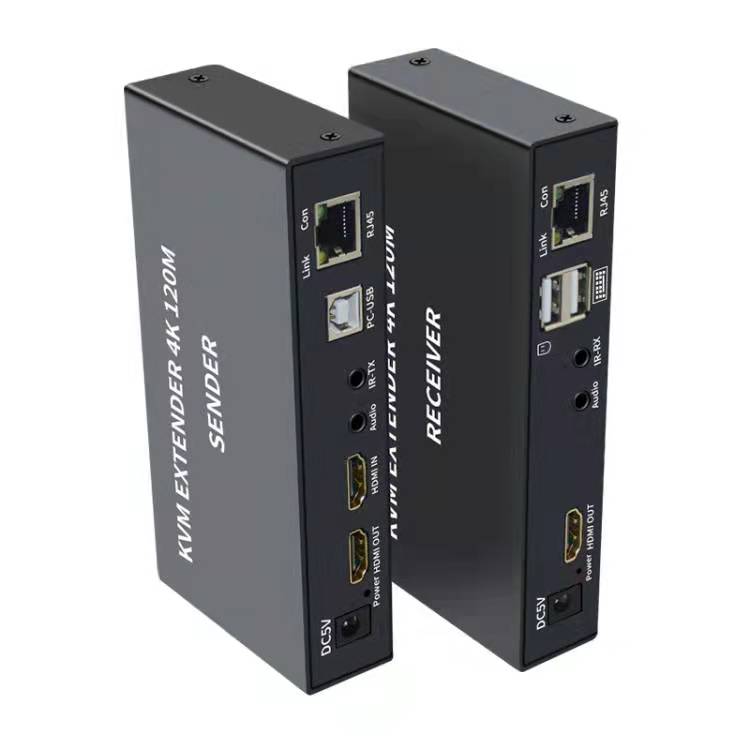

120M KVM Extender
HKE120
Take your remote workstation to the next level. This advanced HDTV KVM Extender transmits stunning 4K Ultra HD video and USB keyboard/mouse signals up to an incredible 120 meters (394 feet) over a single CAT-6 Ethernet cable. Featuring a local loop-out port on the transmitter, it provides ultimate flexibility for both local and remote monitoring, making it the perfect solution for large-scale command centers, long-distance digital signage, and multi-room office setups
Key Features
Ultra HD 4K Resolution: Supports resolutions up to 3840x2160 @ 30Hz, delivering crystal-clear, sharp visuals with deep color and fine detail.
Ultra-Long Distance Transmission: Extends HDMI and KVM signals up to 120 meters via a single CAT-6 network cable (Cat5e/6 recommended for optimal performance), eliminating the need for costly fiber optics for medium-range distances.
Local Loop-Out (TX): The Transmitter (TX) unit includes an additional HDMI output port for local display. This allows you to monitor the source video on a local screen simultaneously while operating the remote display.
Full KVM Control: Built-in USB ports on both the Transmitter and Receiver allow for easy connection of a keyboard and mouse, enabling full remote access and control of your source PC.
Plug and Play: Pure hardware design requires no software installation or driver setup. Simply connect your devices and power on for instant operation.
Robust & Stable: Equipped with a durable metal casing for excellent heat dissipation, ensuring reliable 24/7 performance in industrial and commercial environments.
Technical Specifications
Transmission Distance: Up to 120 meters (via CAT-6 cable).
Video Resolution: Up to 4K (3840x2160) @ 30Hz; backward compatible with 1080p/720p.
HDMI Compliance: HDMI 1.4, HDCP 1.4 compliant.

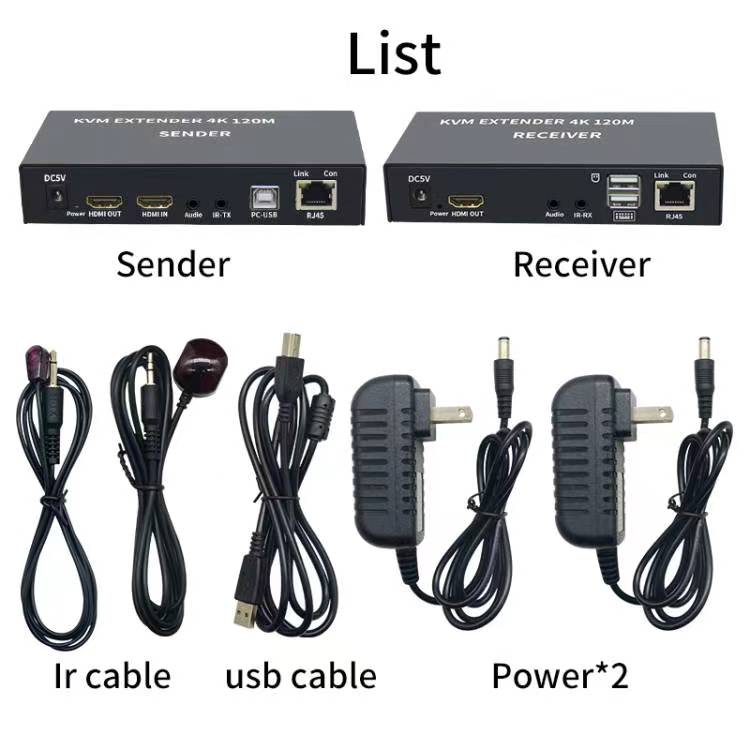

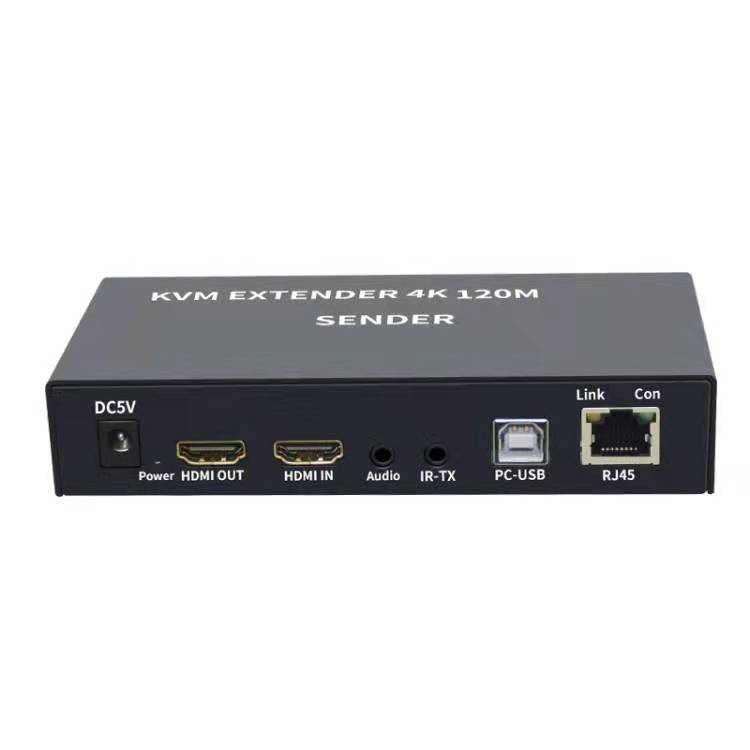

Interface (TX Unit): 1 x HDMI Input, 1 x HDMI Loop-Out, 1 x USB (Keyboard/Mouse), 1 x DC 5V Power Port.

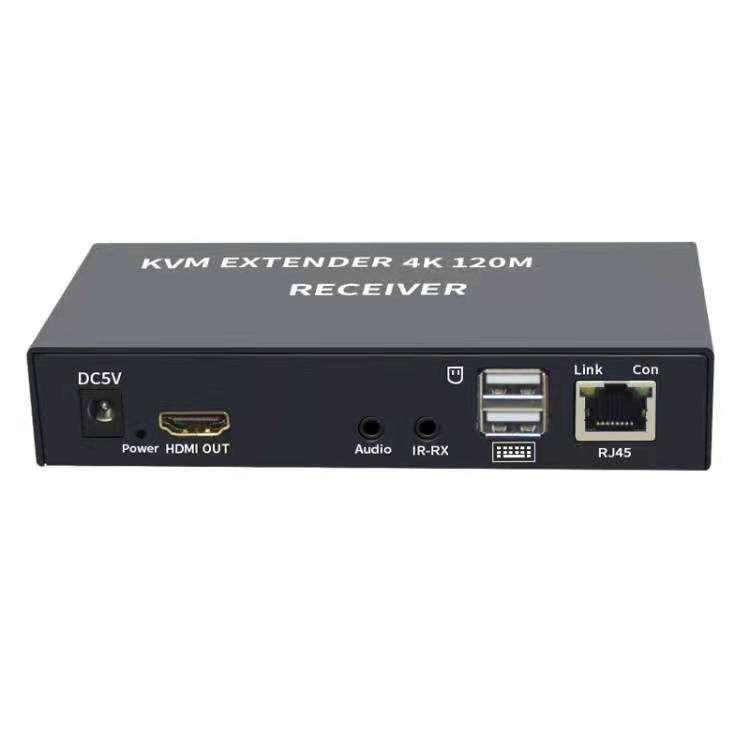

Interface (RX Unit): 1 x HDMI Output, 2 x USB (Keyboard/Mouse), 1 x DC 5V Power Port.
Power Supply: DC 5V (Power adapters included).
Casing: Industrial-grade aluminum housing.
Ultra HD 4K Resolution: Supports resolutions up to 3840x2160 @ 30Hz, delivering crystal-clear, sharp visuals with deep color and fine detail.
Ultra-Long Distance Transmission: Extends HDMI and KVM signals up to 120 meters via a single CAT-6 network cable (Cat5e/6 recommended for optimal performance), eliminating the need for costly fiber optics for medium-range distances.
Local Loop-Out (TX): The Transmitter (TX) unit includes an additional HDMI output port for local display. This allows you to monitor the source video on a local screen simultaneously while operating the remote display.
Full KVM Control: Built-in USB ports on both the Transmitter and Receiver allow for easy connection of a keyboard and mouse, enabling full remote access and control of your source PC.
Plug and Play: Pure hardware design requires no software installation or driver setup. Simply connect your devices and power on for instant operation.
Robust & Stable: Equipped with a durable metal casing for excellent heat dissipation, ensuring reliable 24/7 performance in industrial and commercial environments.
Technical Specifications
Transmission Distance: Up to 120 meters (via CAT-6 cable).
Video Resolution: Up to 4K (3840x2160) @ 30Hz; backward compatible with 1080p/720p.
HDMI Compliance: HDMI 1.4, HDCP 1.4 compliant.
Interface (TX Unit): 1 x HDMI Input, 1 x HDMI Loop-Out, 1 x USB (Keyboard/Mouse), 1 x DC 5V Power Port.
Interface (RX Unit): 1 x HDMI Output, 2 x USB (Keyboard/Mouse), 1 x DC 5V Power Port.
Power Supply: DC 5V (Power adapters included).
Casing: Industrial-grade aluminum housing.
