KVM Extender

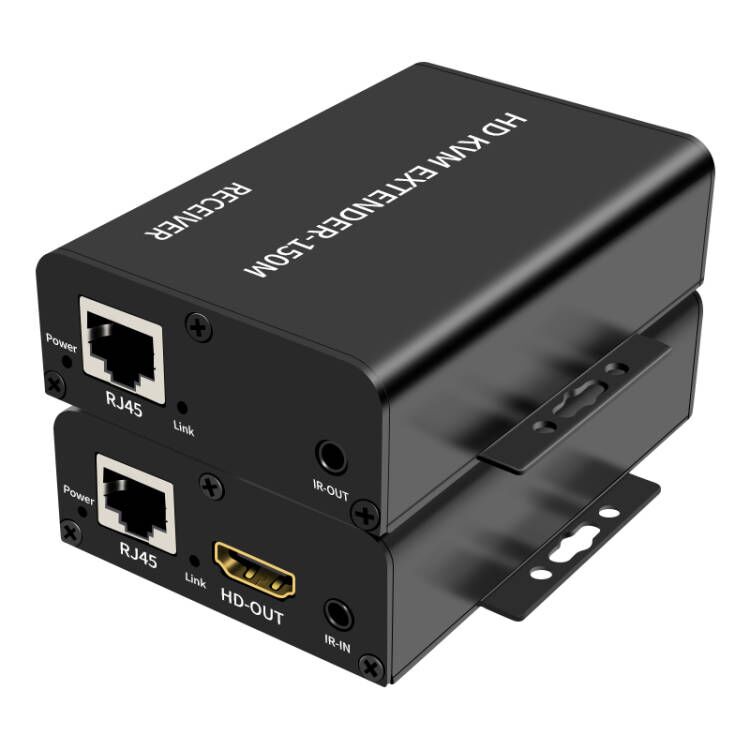

150M HDTV KVM Extender
HKE150
Break the distance barrier with our premium 150-meter HDTV KVM Extender. Designed to deliver crystal-clear 4K Ultra HD video and lag-free USB KVM control over a single CAT-6 Ethernet cable, this device extends your workstation up to an astounding 150 meters (492 feet). Equipped with a convenient local loop-out port on the transmitter, it offers a versatile solution for long-distance broadcasting, security command centers, and large-scale commercial displays.
Key Features
Stunning 4K@30Hz Visuals: Supports high-definition resolution up to 3840x2160 @ 30Hz, ensuring exceptional image clarity, accurate color reproduction, and fine detail for professional monitoring and presentations.
Ultra-Long 150-Meter Extension: Transmits both HDMI video and USB data signals up to 150 meters via a single, cost-effective CAT-6 network cable. Overcomes long-distance limitations without signal degradation.

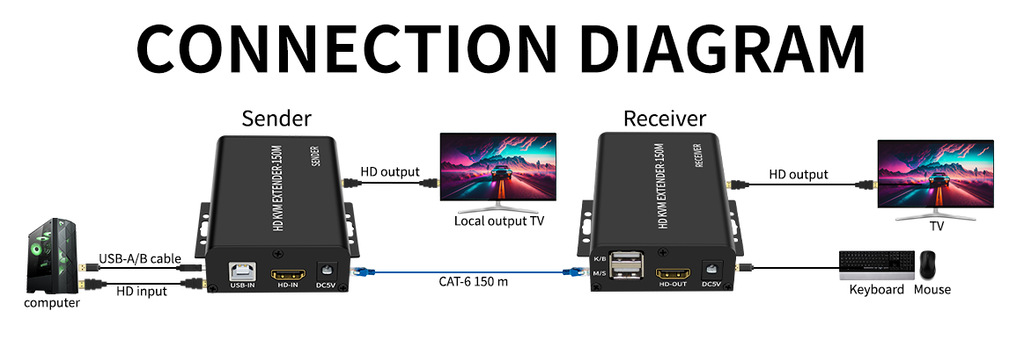

TX Local Loop-Out Function: The Transmitter unit features an independent HDMI loop-out port that allows you to connect a local monitor right at the source. This enables real-time local preview and monitoring while simultaneously displaying the signal at the remote end.
Complete Remote KVM Control: Built-in USB ports on the Receiver unit allow for seamless connection of a keyboard and mouse. Control your remote computer, server, or media player exactly as if you were sitting right in front of it.
True Plug & Play: Driver-free hardware installation. Simply connect the transmitter and receiver, plug in the power adapters, and you are ready to go with zero software configuration.
Industrial-Grade Durability: Housed in a rugged, heavy-duty metal casing to ensure efficient heat dissipation, long-term stability, and reliable operation 24/7.
Technical Specifications
Transmission Distance: Up to 150 meters (via single CAT-6 cable).
Video Resolution: Up to 4K (3840x2160) @ 30Hz (backward compatible with 1080P, 720P).
HD Standards: Compliant with HDCP 1.4 and HDCP 1.4.

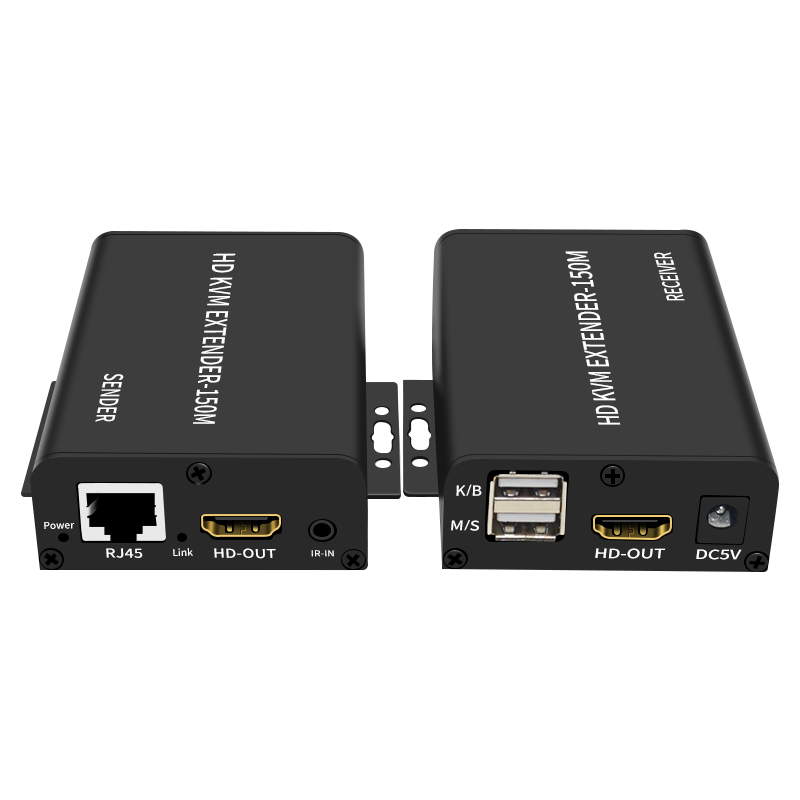

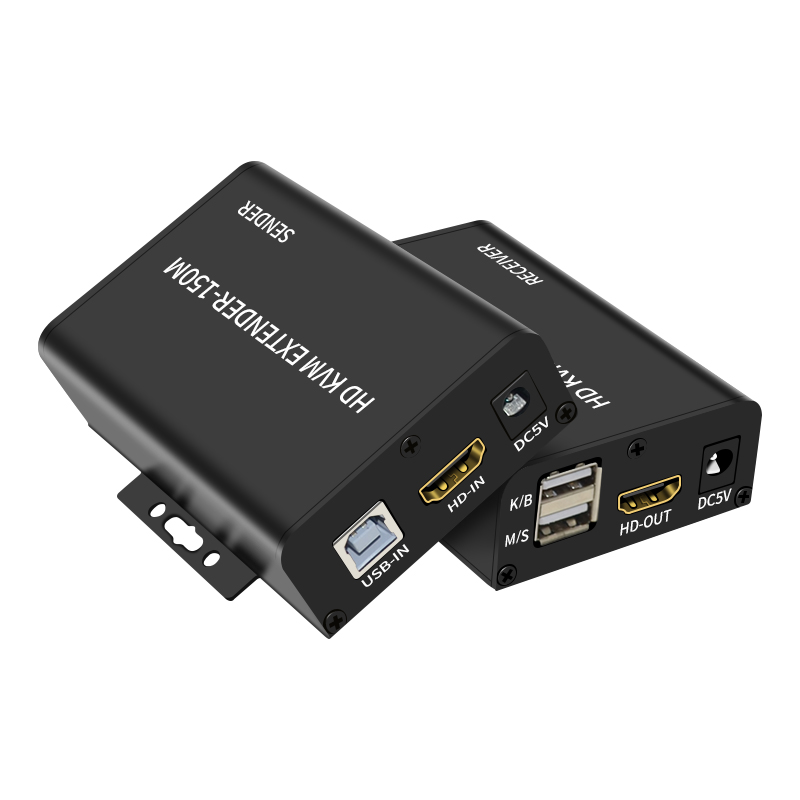

Interface (TX Unit): 1 x HDMI Input, 1 x HDMI Loop-Out, 1 x USB (K/M), 1 x DC 5V Power Port.

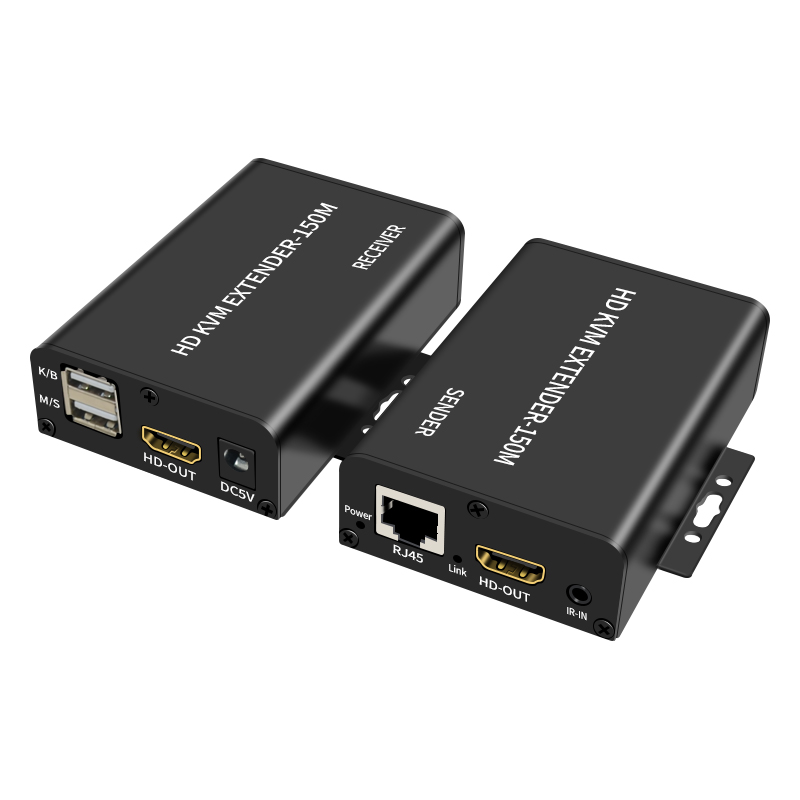

Interface (RX Unit): 1 x HDMI Output, 2 x USB (K/M), 1 x DC 5V Power Port.

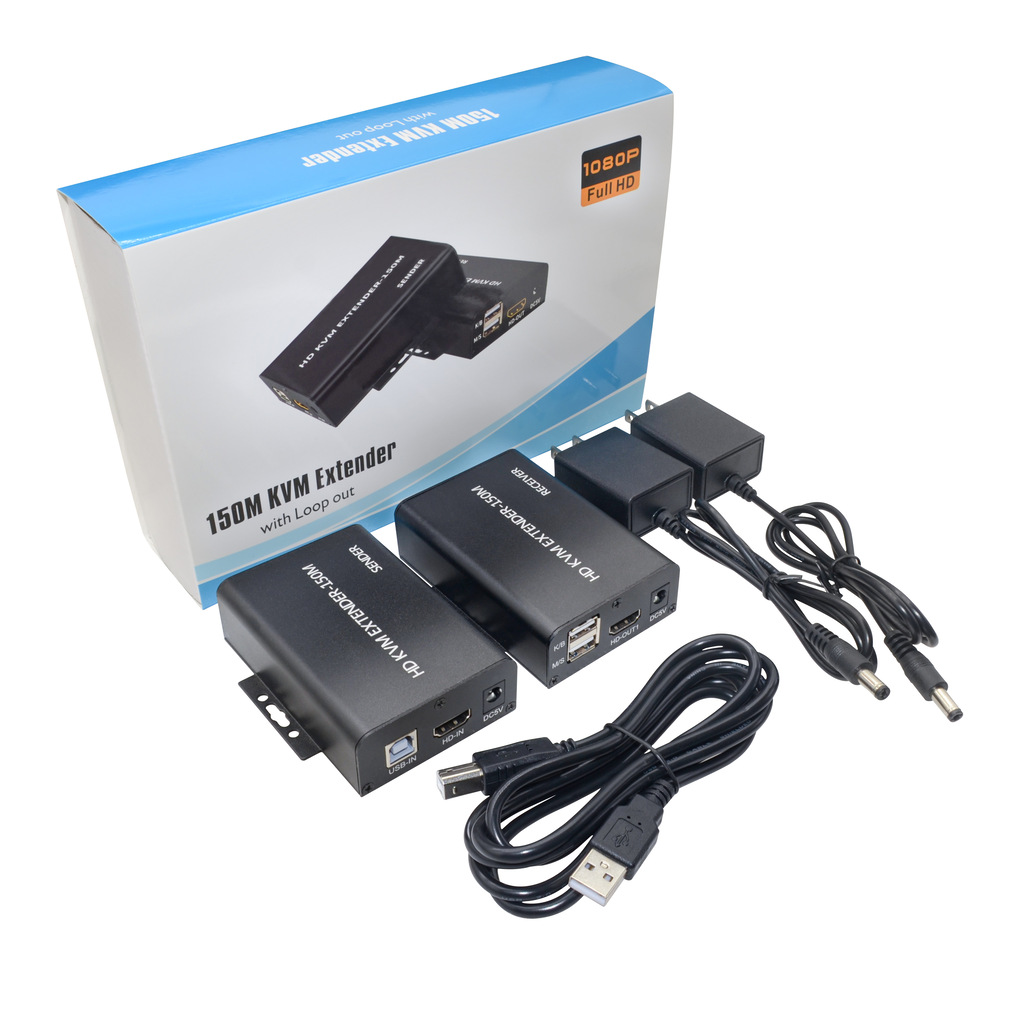

Power Supply: DC 5V (Power adapters included).

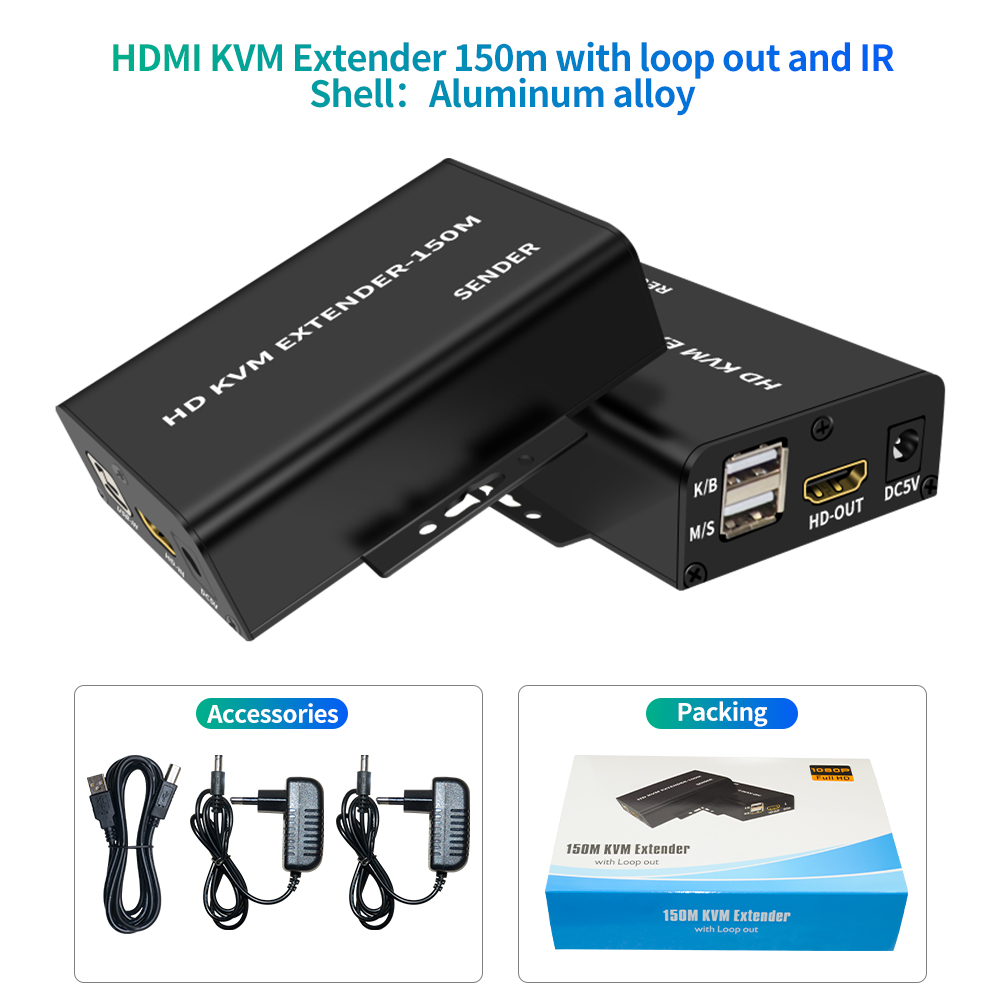

Casing Material: Aluminum housing for excellent heat dissipation
Stunning 4K@30Hz Visuals: Supports high-definition resolution up to 3840x2160 @ 30Hz, ensuring exceptional image clarity, accurate color reproduction, and fine detail for professional monitoring and presentations.
Ultra-Long 150-Meter Extension: Transmits both HDMI video and USB data signals up to 150 meters via a single, cost-effective CAT-6 network cable. Overcomes long-distance limitations without signal degradation.
TX Local Loop-Out Function: The Transmitter unit features an independent HDMI loop-out port that allows you to connect a local monitor right at the source. This enables real-time local preview and monitoring while simultaneously displaying the signal at the remote end.
Complete Remote KVM Control: Built-in USB ports on the Receiver unit allow for seamless connection of a keyboard and mouse. Control your remote computer, server, or media player exactly as if you were sitting right in front of it.
True Plug & Play: Driver-free hardware installation. Simply connect the transmitter and receiver, plug in the power adapters, and you are ready to go with zero software configuration.
Industrial-Grade Durability: Housed in a rugged, heavy-duty metal casing to ensure efficient heat dissipation, long-term stability, and reliable operation 24/7.
Technical Specifications
Transmission Distance: Up to 150 meters (via single CAT-6 cable).
Video Resolution: Up to 4K (3840x2160) @ 30Hz (backward compatible with 1080P, 720P).
HD Standards: Compliant with HDCP 1.4 and HDCP 1.4.
Interface (TX Unit): 1 x HDMI Input, 1 x HDMI Loop-Out, 1 x USB (K/M), 1 x DC 5V Power Port.
Interface (RX Unit): 1 x HDMI Output, 2 x USB (K/M), 1 x DC 5V Power Port.
Power Supply: DC 5V (Power adapters included).
Casing Material: Aluminum housing for excellent heat dissipation
